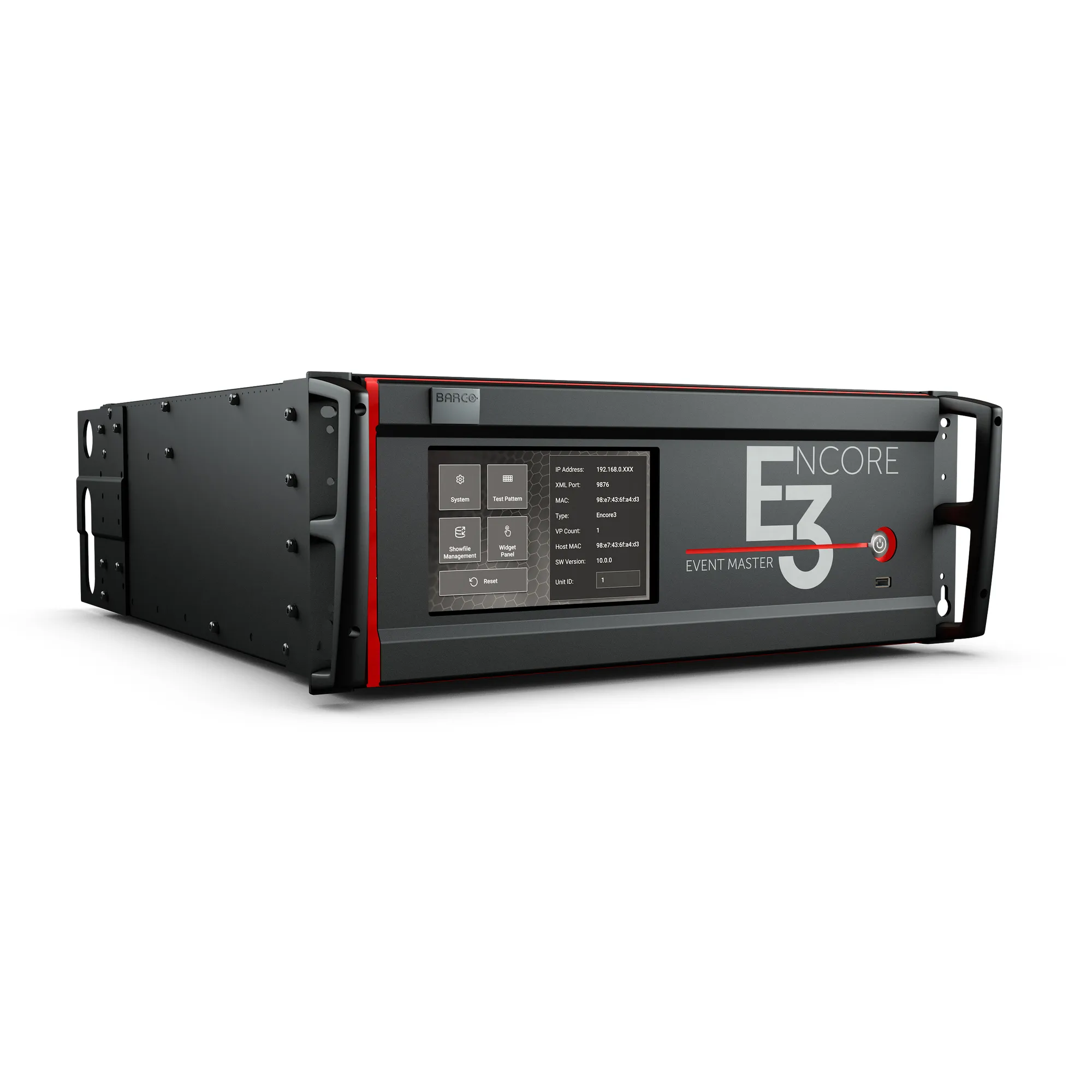

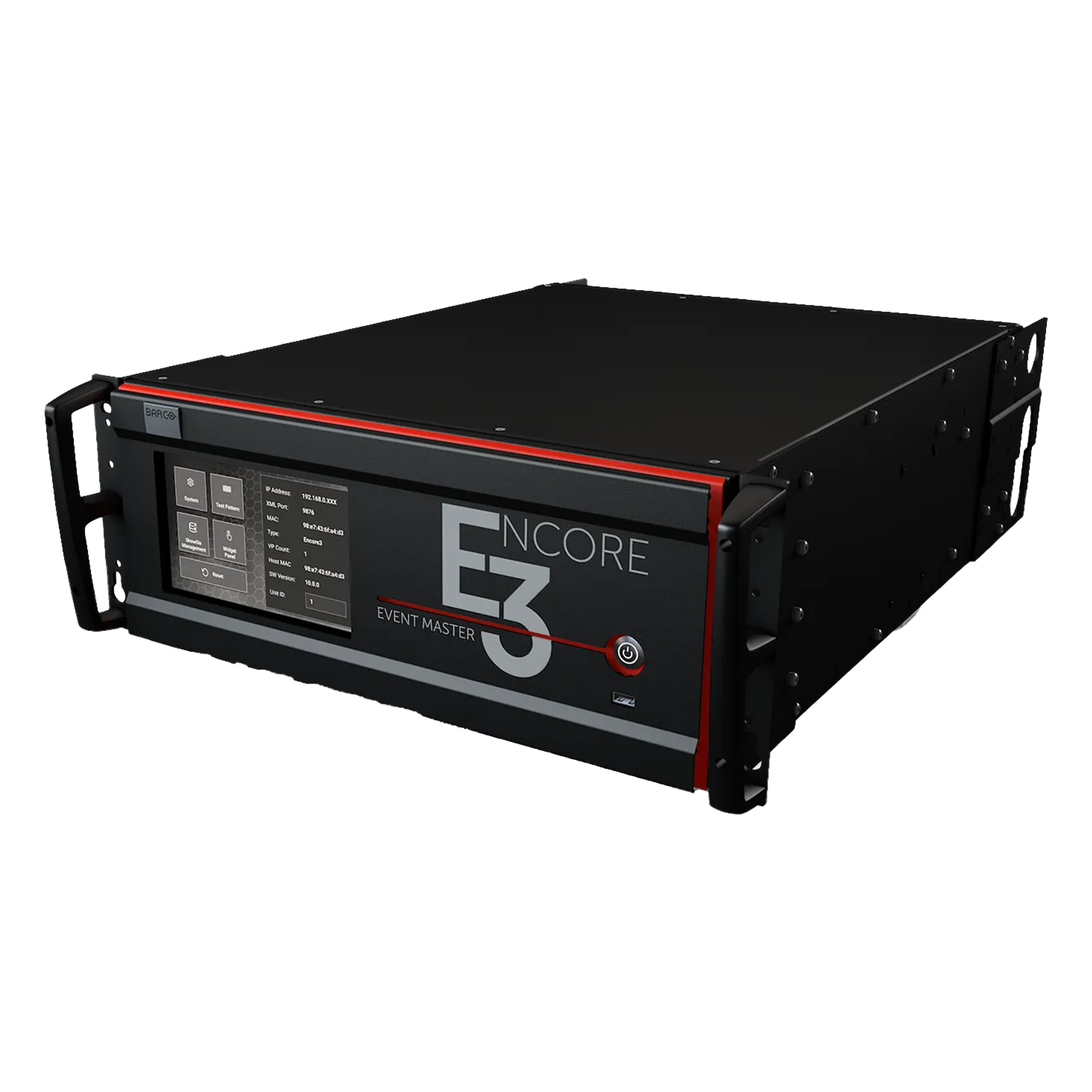

| Live effects canvas |
Boundless canvas with 8x 4K60 PGM outputs
|
| Video inputs |

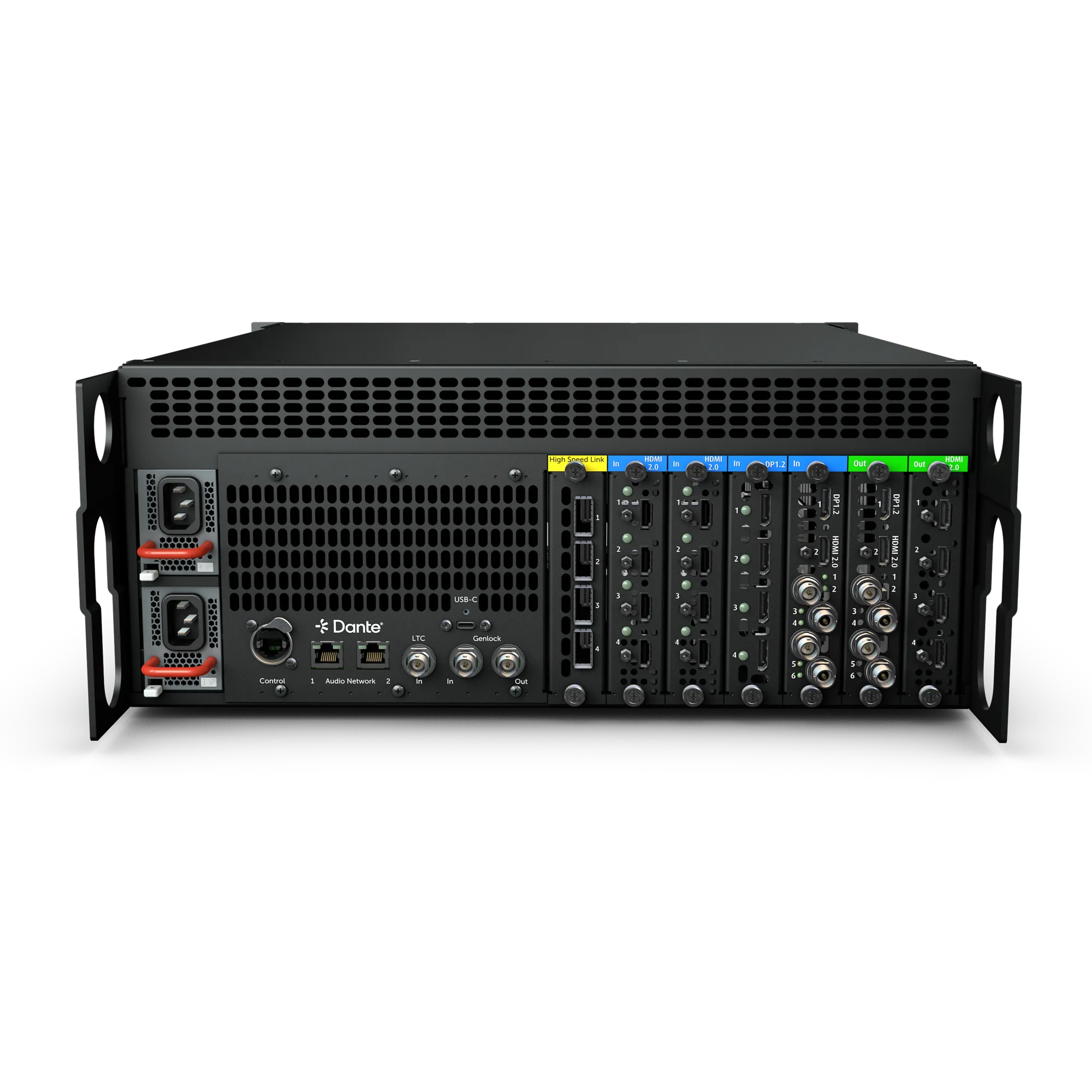

Up to 7 input capable card slots to occupy with Event Master Gen2 cards
– Each input card supports up to 4x 4K @60p inputs
Standard Encore3 Configuration
– 16x 4K @60p inputs
– Up to 4x HD/3G/6G/12G SDI connectors
– Up to 9x HDMI™ 2.0 (up to 4096×2160 @60Hz)
– Up to 5x DisplayPort 1.2 (up to 4096×2160 @60Hz)
|
| Video outputs |
Up to 4 output capable card slots to occupy with Event Master Gen2 cards
– Each output card supports up to 4x 4K @60p outputs
Standard Encore3 Configuration
– 8x 4K@60p outputs
– Up to 4x HD/3G/6G/12G SDI connectors
– Up to 5x HDMI™ 2.0 (up to 4096×2160 @60Hz)
– Up to 1x DisplayPort (up to 4096×2160 @60Hz)
|
| Genlock |
Analog reference input/Output on BNC connectors;
bi-level and blackburst at SD and tri-level at HD
|
| Program output |
Up to 8 program outputs configurable as single screens or tiled/blended widescreens
Configurable for up to 8x 4096 X 2160 @60p
Independent edge blending/feathering control for all four sides
|
| Scaled AUX outputs |
User definable for up to 8x 4096 x 2160 @60p
– Each output card supports up to 2x AUX ouputs
|
| Mixers |
– Positionable non-scaled background mixer per output screen
– Independent layer transitions or full Preview/Program transitions
– Pre-assigned 4 mixable / 8 single (up to 16 mixable / 32 single) scalable PIP/key layers per output screen
|
| Still stores |
Store up to 2160MB (~60 4K60) of still images, supporting stills up to a staggering 160,000px in either horizontal or vertical dimensions
|
| Layer effects |
– Borders (hard, soft, halo) and drop shadows
– Color effects
– Luma, chroma and Cut/Fill keys
– PIP moves via Keyframes
|
| Multiviewer |
– 2x 4K @60p MultiViewer as source that be sent to any output or layer.
– Flexible user-definable layouts
– Monitor all Inputs and screens PVW & PGM
|
| Expandability |

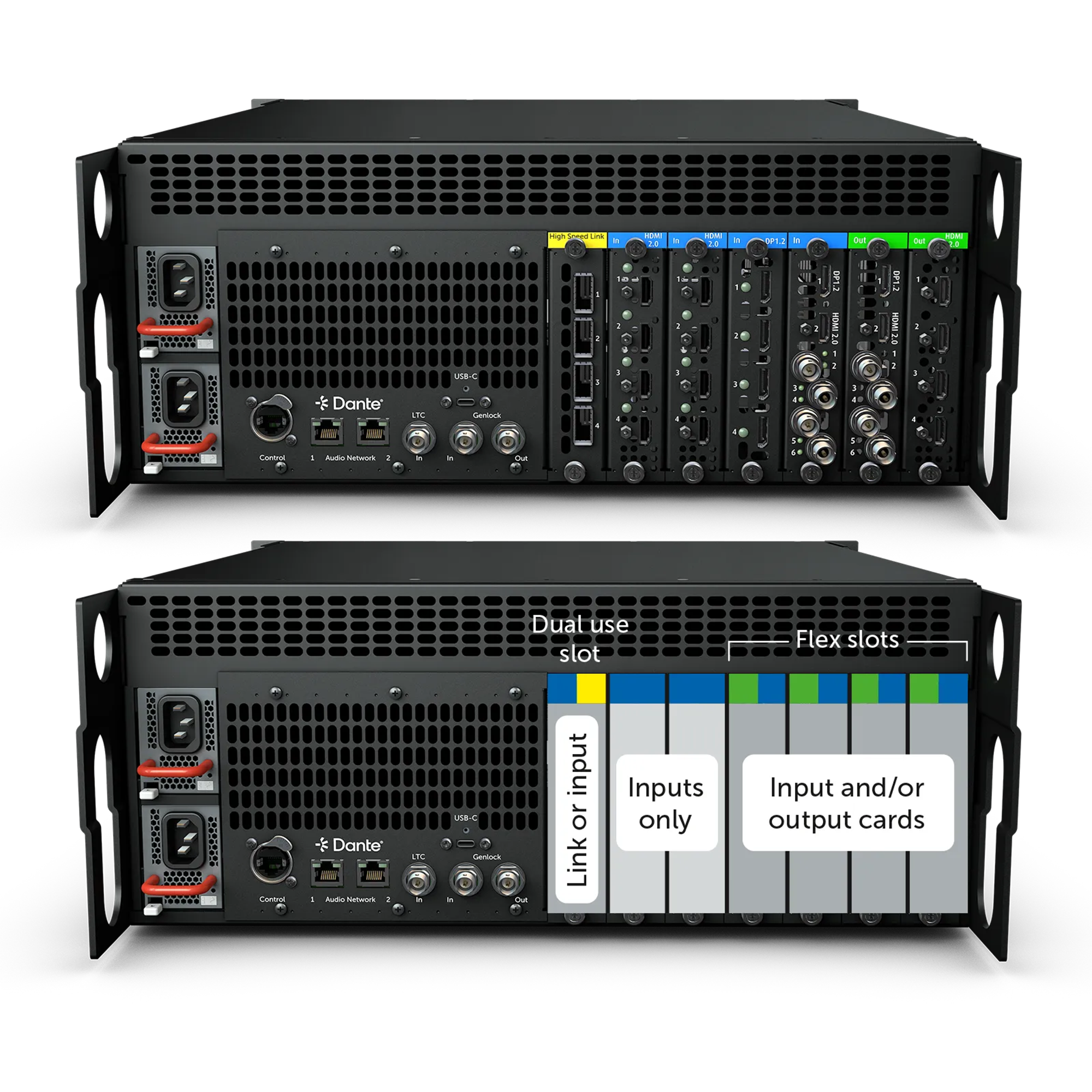

Standard Encore3 Configuration includes:
– 1x Quad 100 G High Speed Expansion Link Card for system expansion; each link card supports 15* x 4K60 in & out per card
– 2x 100G QSFP28 2 meter DAC cables
– Encore3 ships with the ability to link 2 chassis for expansion at first release
Link units to increase available Inputs and Outputs for larger tiled/blended widescreen applications
Easily expandable for larger display applications via 4x QSFP28 link connection; quad 100G High Speed Expansion Link Card required
|
| HDCP |
HDCP compliance determined by installed cards
|
| Control |
Event Master Toolset (V10.x or later) for PC or MAC Event Master controllers WebUI Ethernet RJ-45, 1000/100/10 Mbps autosense
|
| Serviceability |
Field-Serviceable I/O cards (not hot-swappable) Hot-swappable dual-redundant power supplies
|
| Dimensions |
Height: 175.5 mm (6.9 in) -4 RU rackmount
Width: 431.8 mm (17.0 in) without chassis handles, 485.3 mm (19.1 in) with chassis handles attached
Depth: 590.54 mm (23.3 in) from front panel to rear panel without handles or connector protectors, 672.29 mm (26.5 in) overall
|
| Weight |
Standard config.: 29 kg / 64 lb Standard config shipped with flight case: 48.5 kg / 107 lb Empty chassis: 26.3 kg / 58 lb
|
| Power |
Input power: 100-240Vac, 50/60Hz, 12-5A (x2), 1,100 W
Dual-redundant, hot-swappable power supplies
|
| Environmental temperature |
0-40° C / 32-104 F
|
| Environmental humidity |
0-95% non-condensing (non-operating)
0-85% non-condensing (operational)
|
| Warranty |
3 years parts and lab
|
